Louvre Roof
Louvre Roof

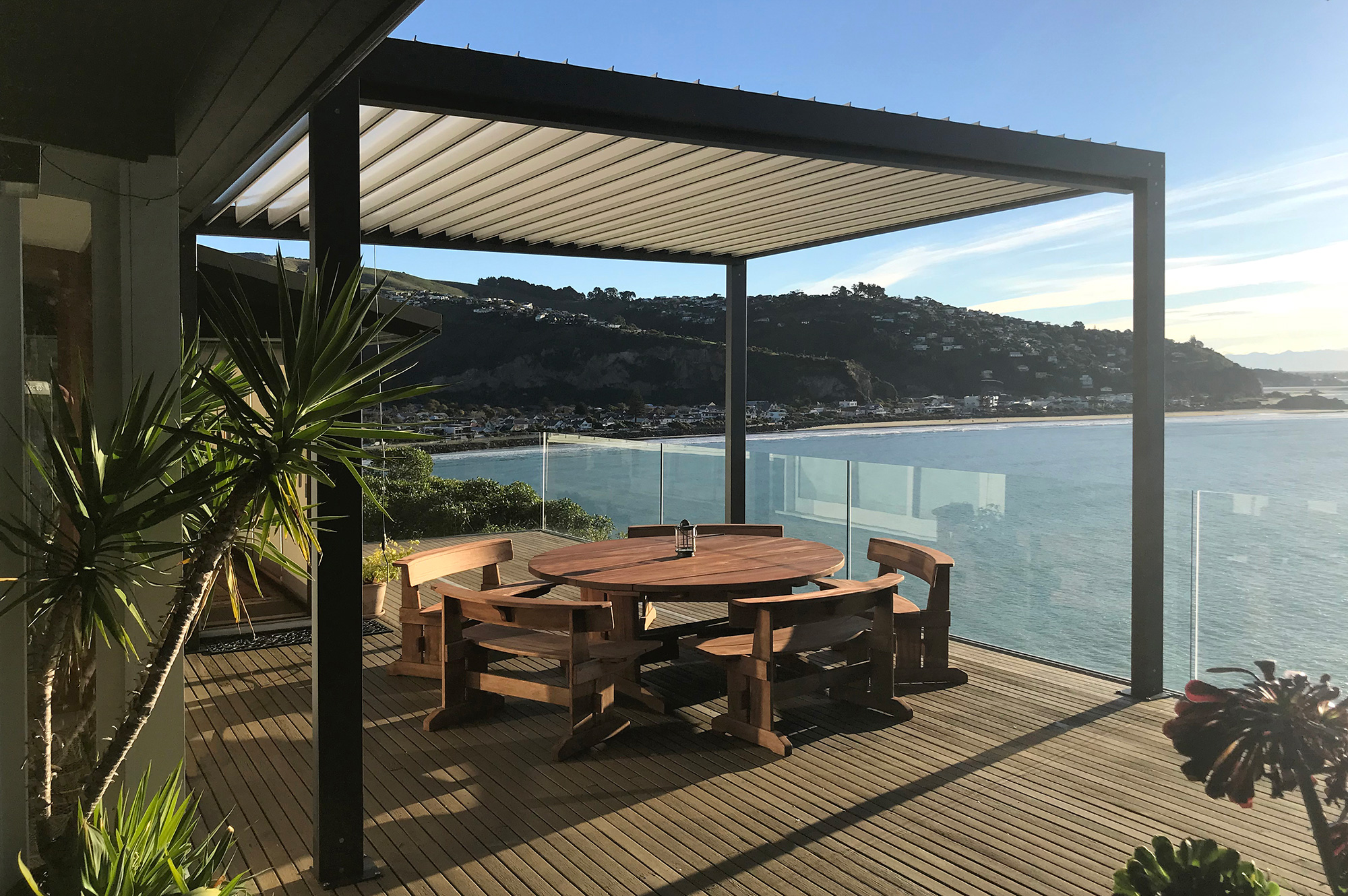

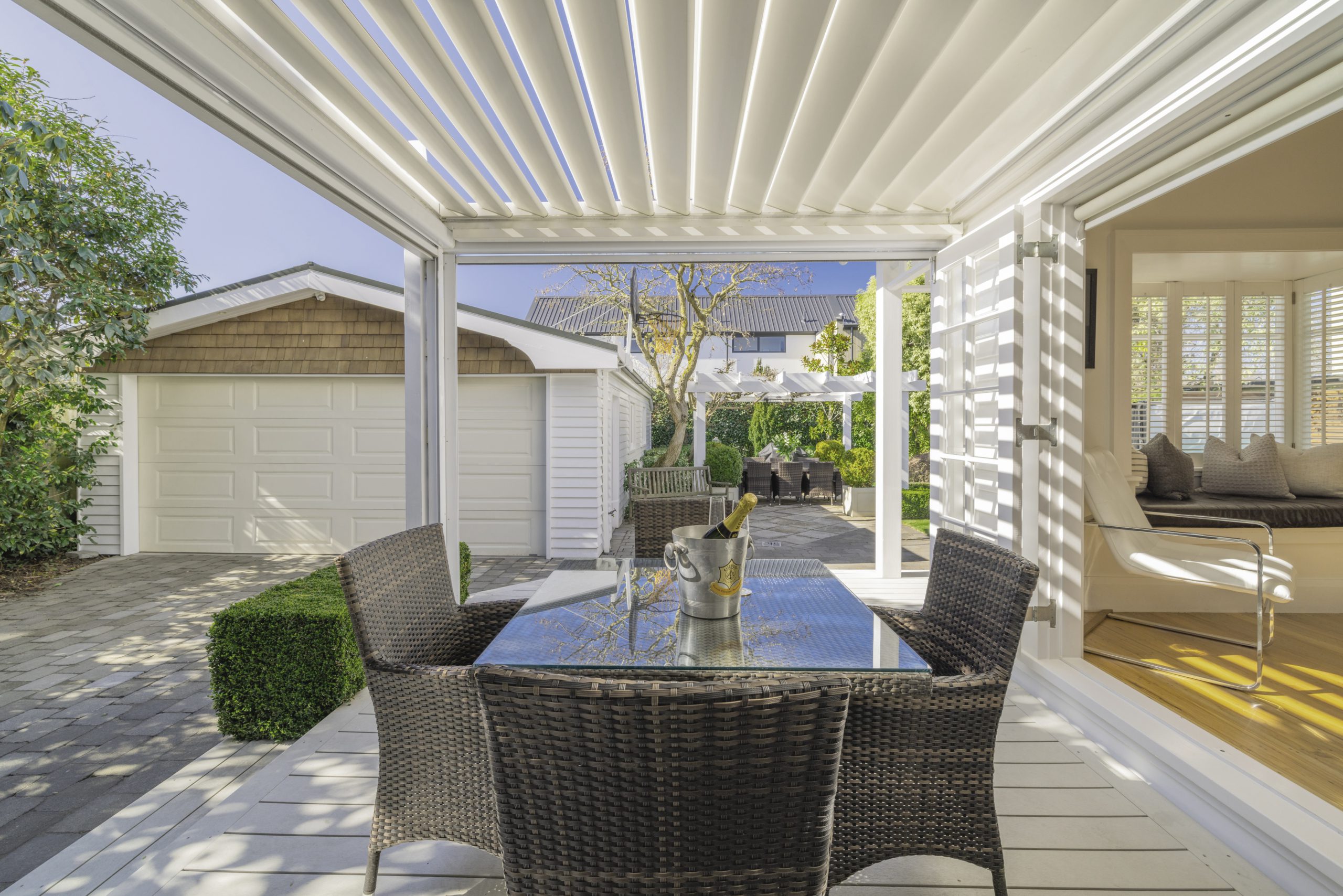

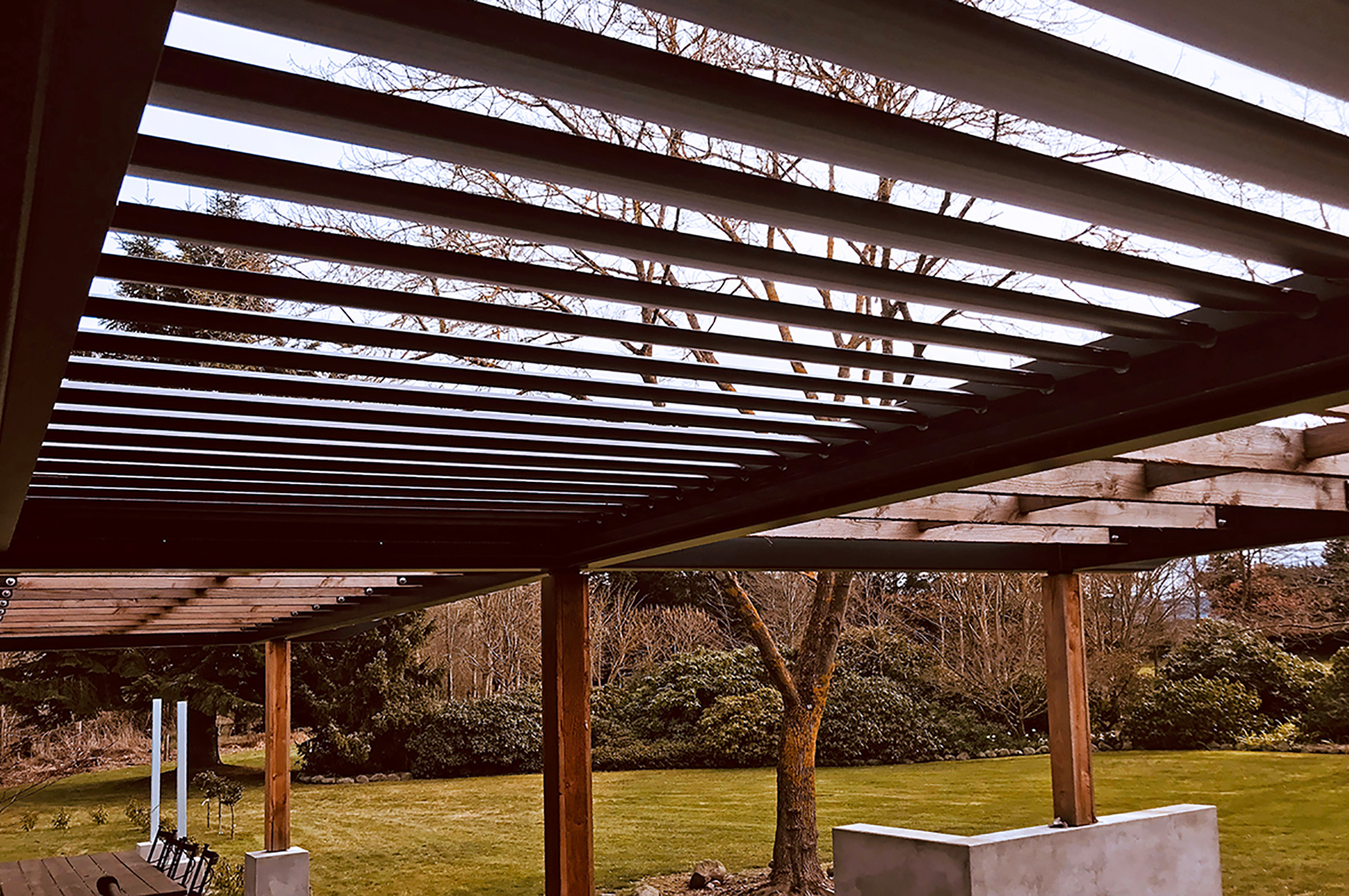

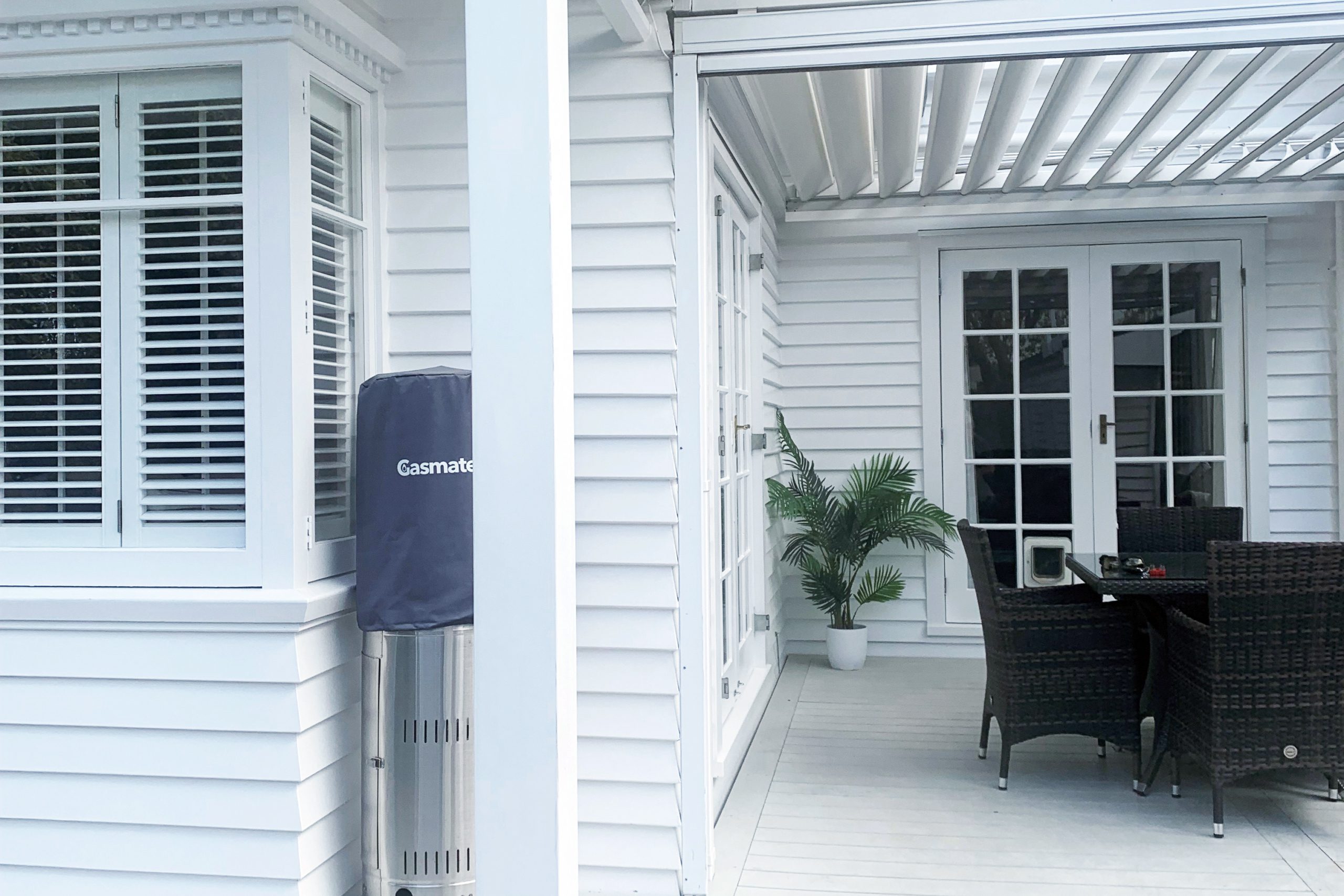

The new generation Louvre Roof is suitable for both private houses, Cafés and commercial installations. It is strongly built and is designed to withstand winds up to 65km/hr. The louvre roof transforms areas such as, Pergola’s, terraces, patios, decks and courtyards into pleasant and protected outdoor areas.
Back to all productsLouvre Roof
Features
- European designed, manufactured and installed by Window Treatments NZ Ltd

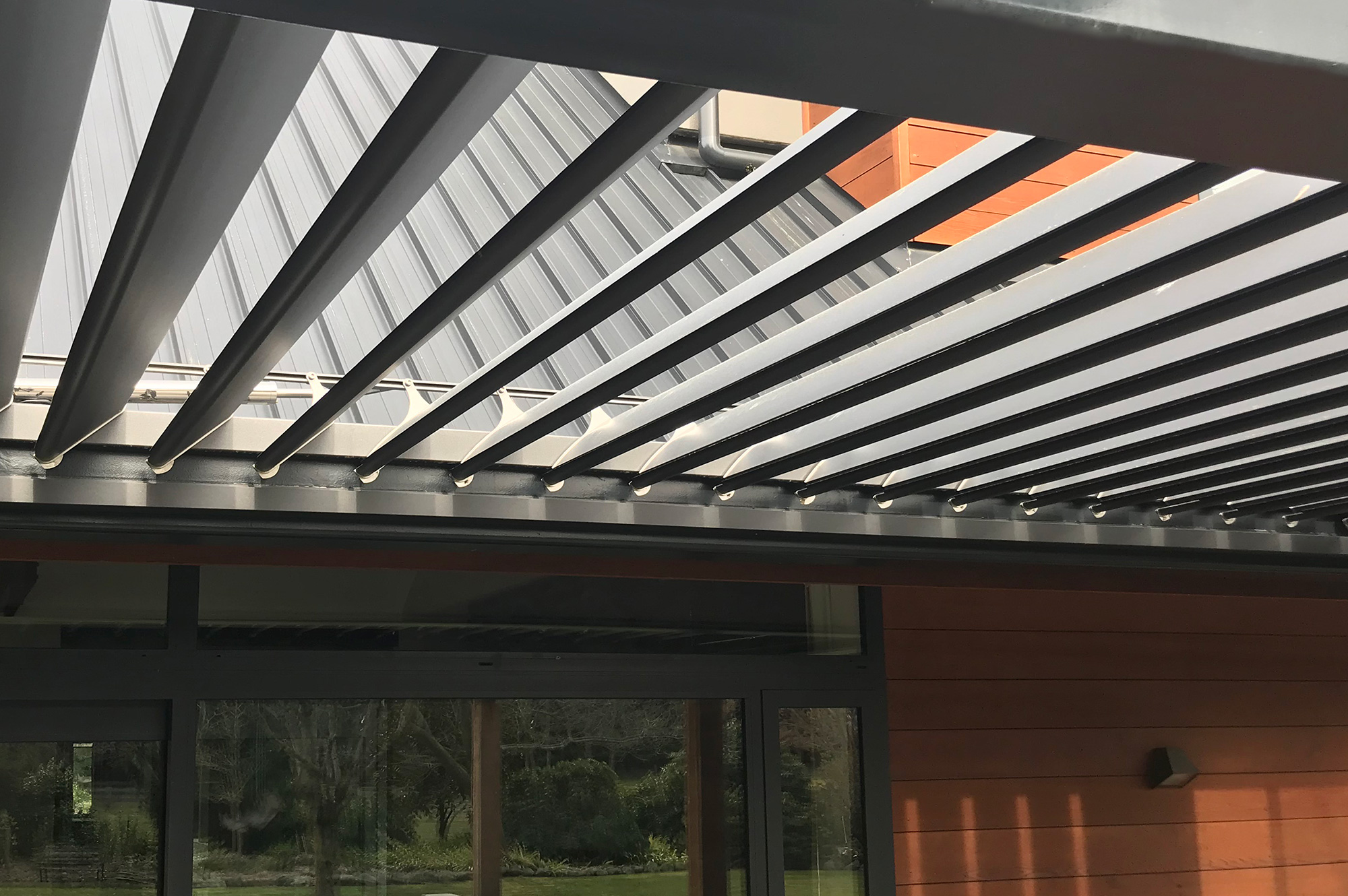

- Sleek aluminium elliptical shaped rotating louvres with quiet closure.
- Marine grade stainless steel parts.
- Extra strong Aluminium Projection & End beams (H212mm x D85mm), & posts (W150mm x D85mm).
- Classical, stylish, minimalistic and very robust.

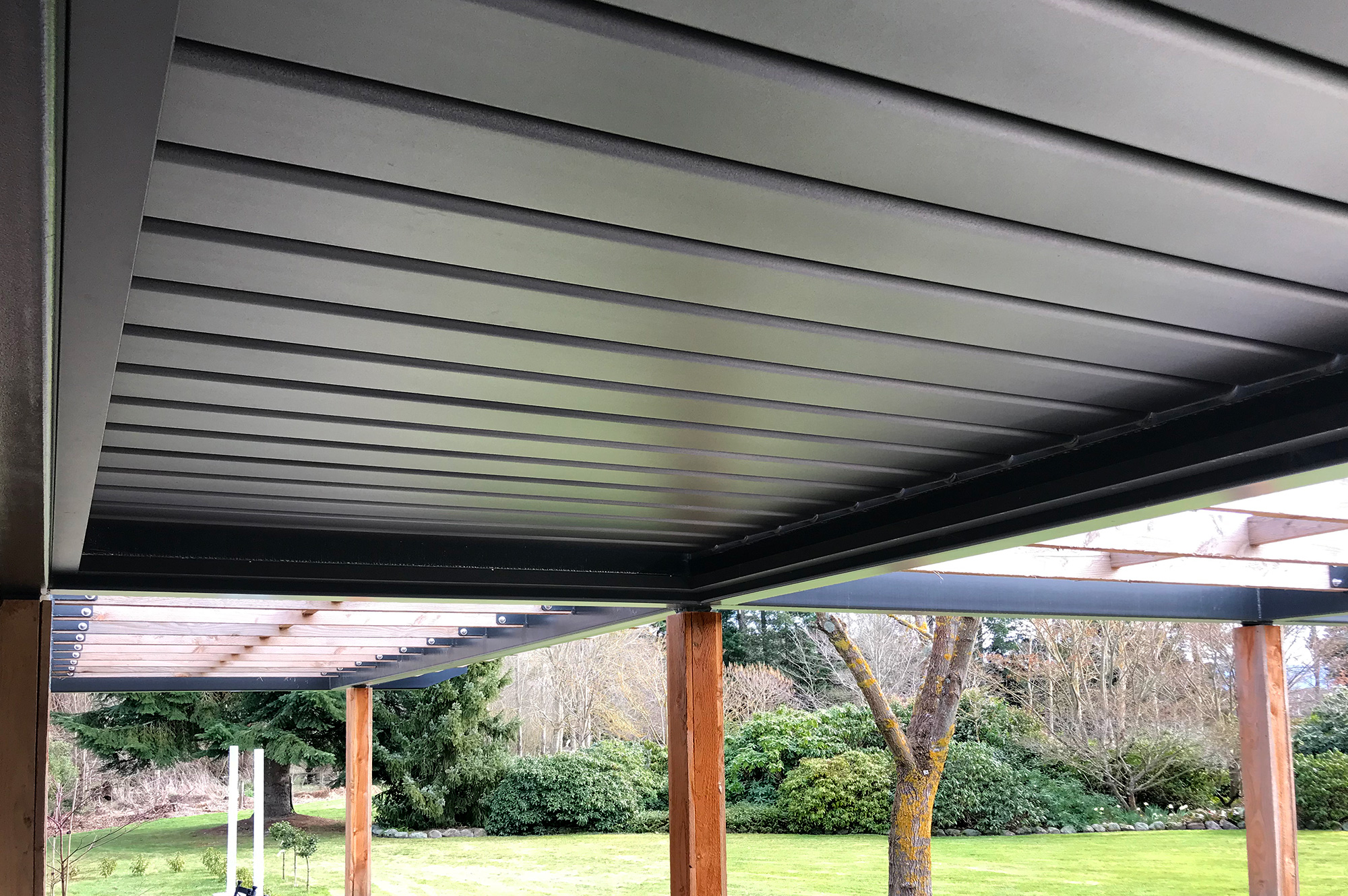

- Can be free standing, attached to an existing building or attached to an existing pergola structure.
- Motorised with 240v Elero Picolla XL (Italian) Stainless steel motor with remote control or wall switch.
- Maximum overall width: 4100mm
- Maximum projection 7m (no middle post is required for a 7m projection)
- Maximum height between the floor and the underside of the projection beam is 2.8m
- Maximum height from the floor to the top of the beams is 3.01m.
- Multi – modular louvre roofs can be manufactured for large areas
- Two standard colours: Gun Metal (metallic grey/black and Perla (off white)
- Special custom colours are available.
- Option for LED lighting strips (6 colours) with remote control for dimming, colour modes and saturation control
- Maximum size possible without requiring a building consent when attached to a building is 20m2 providing the louvre roof is at ground level. Maximum size possible without requiring a building consent when the Louvre Roof is freestanding (not attached a building), is 30m2 providing the louvre roof is at ground level. Louvre Roofs irrespective of size installed on floor levels 1 and above, require a building consent. Planning permission (PIM) may be required regardless of the louvre roof size. The customer is responsible to apply and obtain a building consent and/or PIM if required. Window Treatments NZ Ltd do not apply for building consents when required
- The louvre roof is weather proof but is not guaranteed to be water tight in adverse or storm conditions. The louvres must be opened when wind exceeds 65km/hr and or when snowing.
- Protects against snowfall up to 50 kg/m2 (even load)
- Three-year warranty.
The new generation Louvre Roof is suitable for both private houses, Cafés and commercial installations. It is strongly built and is designed to withstand winds up to 65km/hr. The louvre roof transforms areas such as, Pergola’s, terraces, patios, decks and courtyards into pleasant and protected outdoor areas.

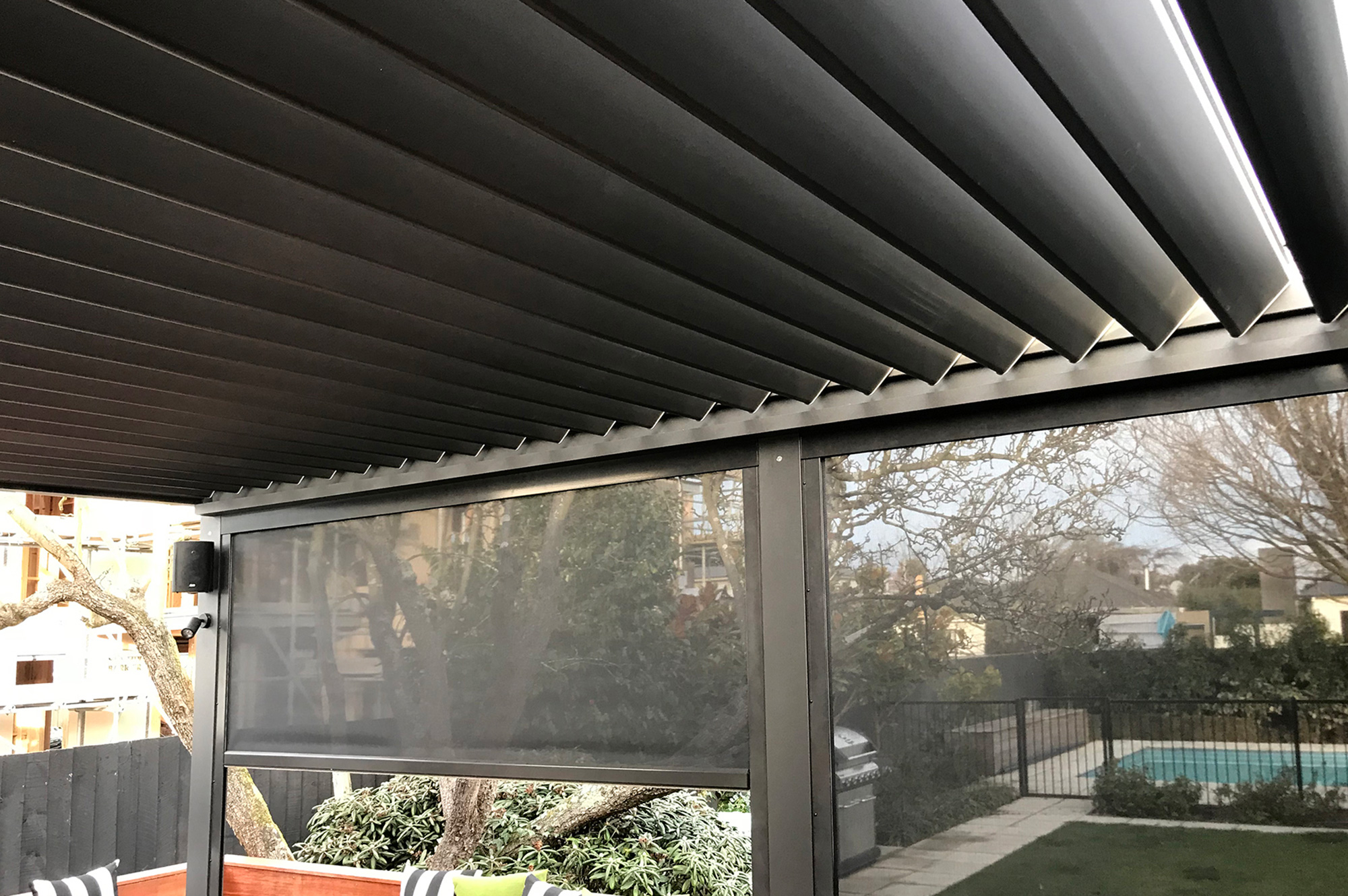

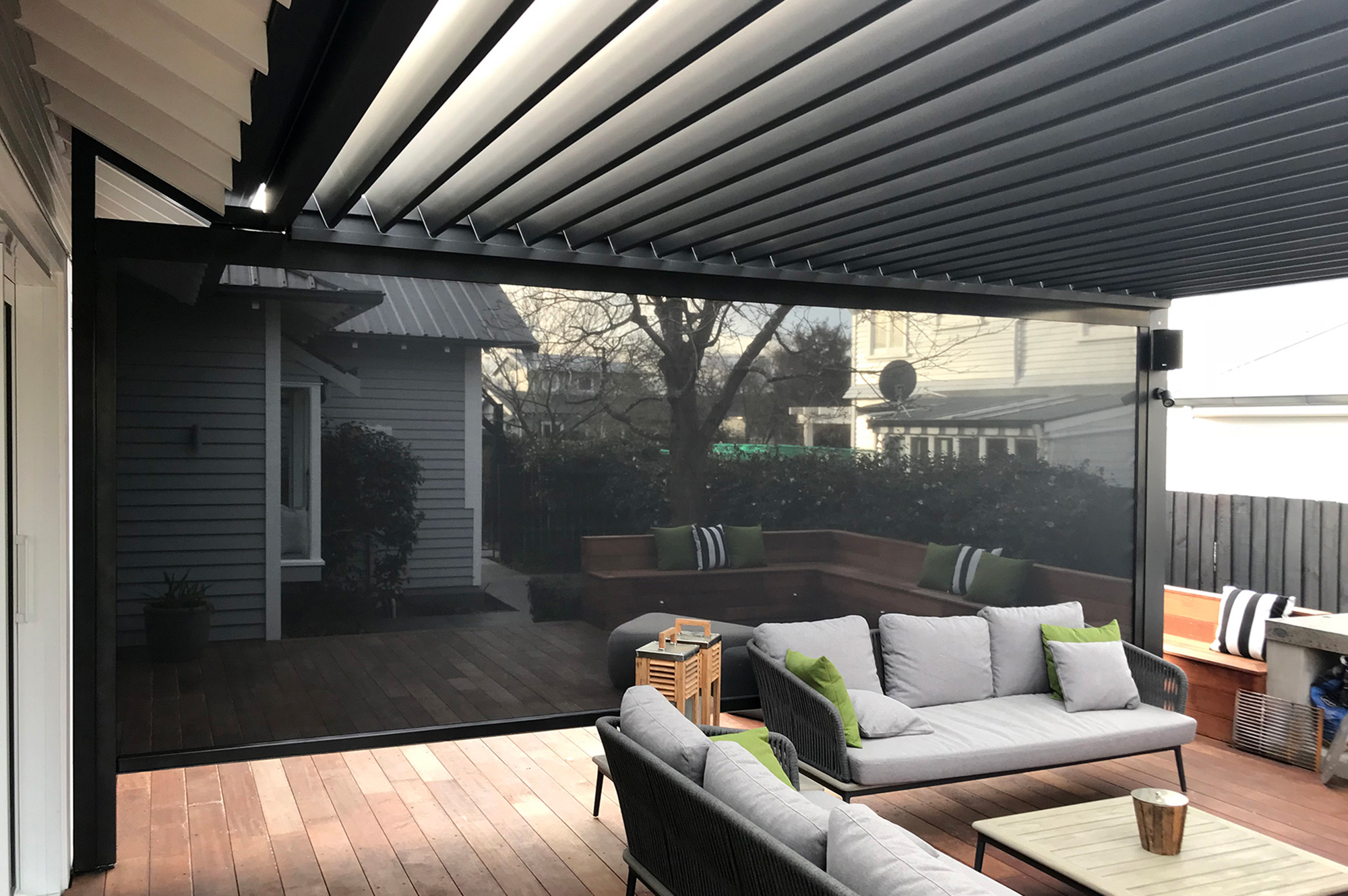

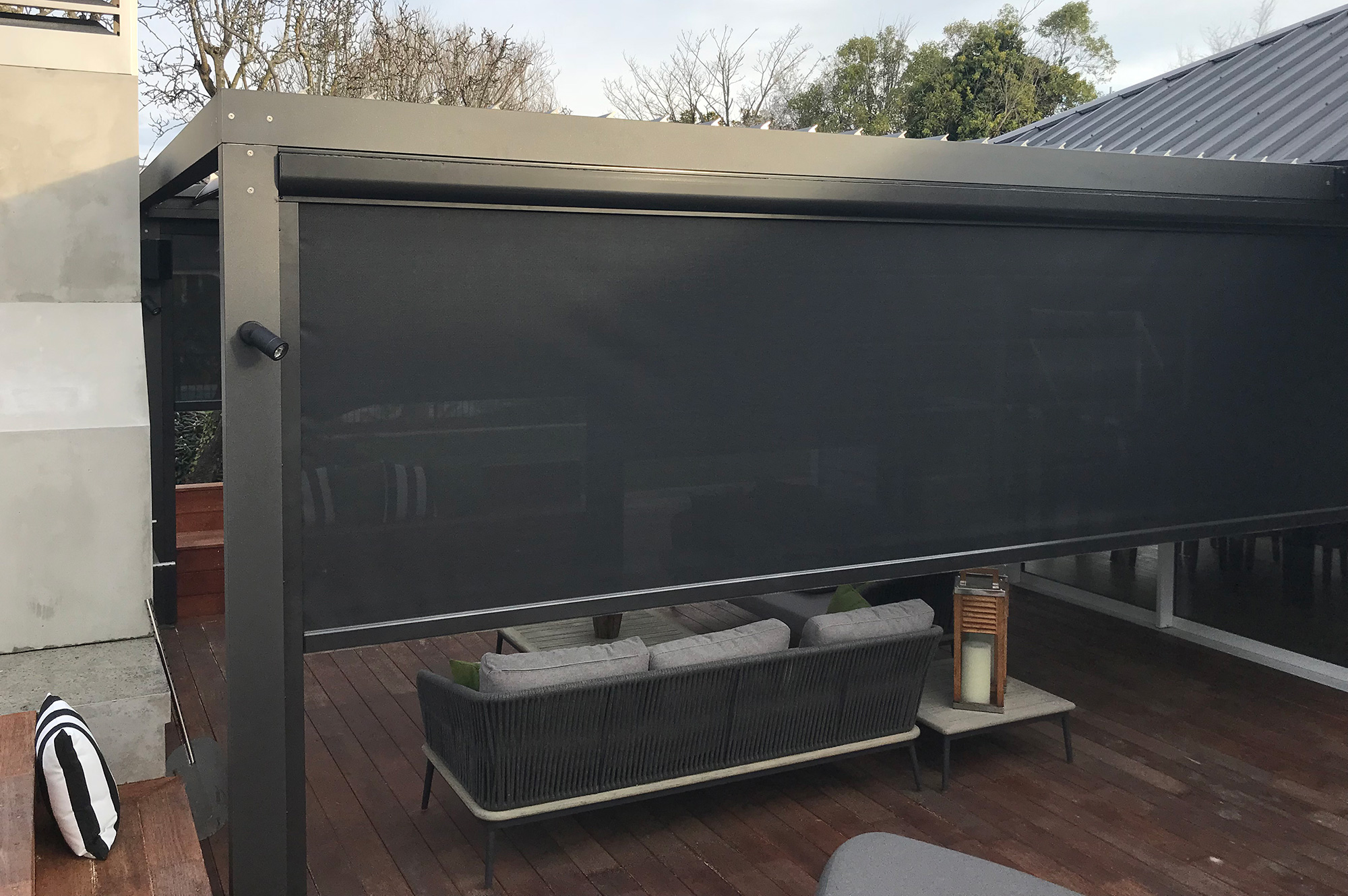

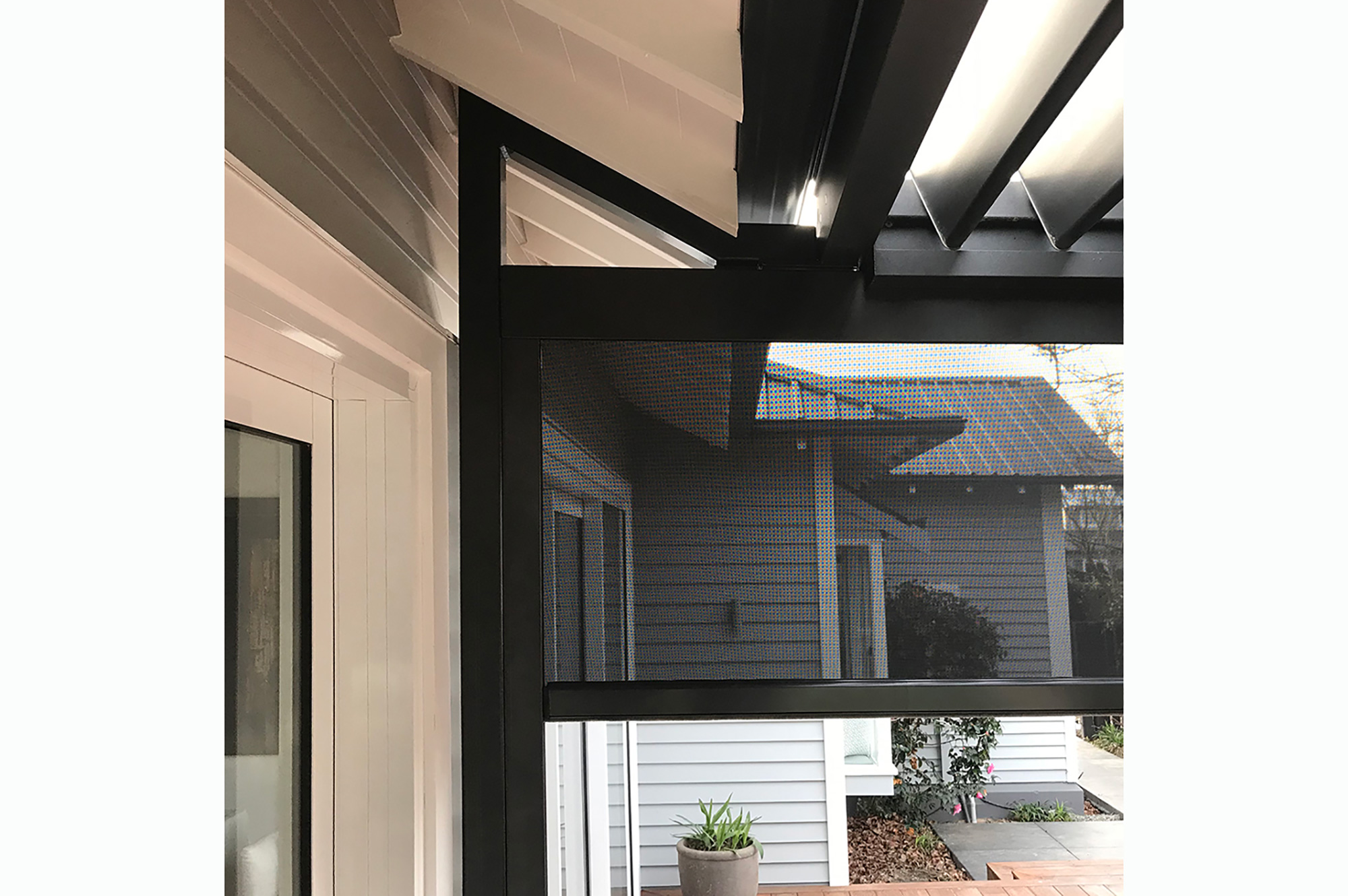

For the ultimate in outdoor sun, rain and wind protection, or just to provide a new outdoor enclosed area, add Securo Blinds to your louvre roof.
Motorised for total convenience, Securo blinds can be installed onto both sides and ends of the louvre roof.
